Function Description



  • 62" gigantic exhaust fan for animal farm house and workshop use.
  • High efficient and air volume but power saving.
  • Strong SMC frame structure and fan blades
  • Permanent-magnet synchronous motor and AC motors are optional.
Product Specifications

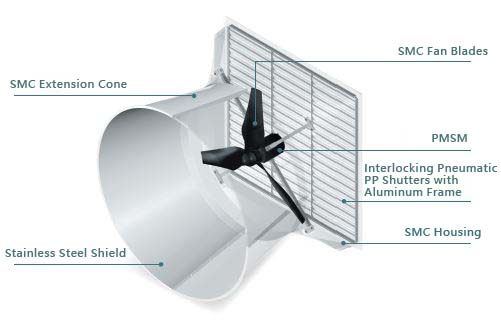

Model 62" K300D (with Extended Cone)
Frame SMC Glass Fiber
Blades 57" 3 SMC Blades
Motor 1.5HP PMSM F
Poles 16P
Rotation Speed 670RPM
Sound Volume 79dB(Detected from 3m near)
Voltage (Regular) 3∮220V,60Hz
Electric Current(A) 3.85A
Power Cosumption(w/hr) 1330w/hr
Air Flow 1180CMM
Size L169xW145xH169cm
Weight 114kg

Notes: The sound volume data are detected from 3m near, and will be verified in different surrounding areas.
